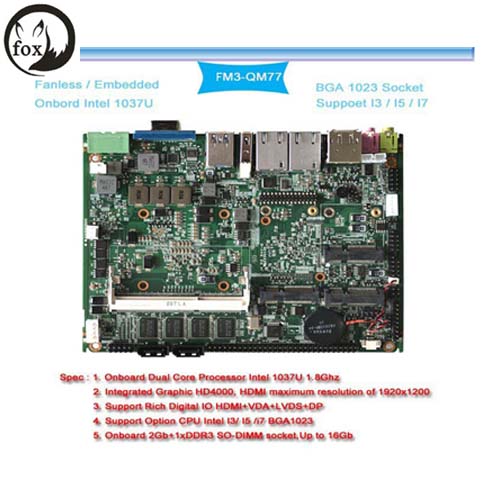

Mini 3.5 inch motherboard with onboard CPU I7 Processor
窗体顶端
Price:
US $297.00 / Set
窗体底端
Product Description
Support I3 / I5 / I7 CPU 3th mobile CPU BGA1023 Socket
Packing list: With intel i5 2410 M: 236 USD
With Intel I3 3110M : 261 USD
More Information:
Spec:
CPU: Intel 1037U (Default),Support I3 / I5 /I7 Processor / Socket BGA1023
Chipest: Intel QM77
Memory: Onboard 2Gb / 4Gb Ram +1x DDRIII Slot (1066/1333 Mhz)
Lan: 2XRJ45, gigabit ethernet
Bios: AMI Ver 2.15.1227
Display : Integrated HD 4000.Support LVDS / DP / HDMI/ VGA.
Power Consumption: 17W.
Power Supply: DC 9-25V In.
|
Processor
|
1037U CPU default optional I3/I5/I7 Processor PGA 1023
|
|
BIOS
|
AMI EFI 64 M bit
|
|
System Chipset
|
Intel QM77
|
|
System Memory
|
2xDDR3 1066/1333MHz SDRAM Socket
|
|
Graphic Interface
|
18/24Bit LVDS,HDMI VGA HD4000
|
|
Ethernet Controller
|
Intel 82574L/82579LM 10/100/1000Mbps
|
|
I/O Chipset
|
ITE 8718F/HX-L
|
|
Serial Ports
|
6xCOM(1xRs232/422/485) 5xRs232 / Rs485
|
|
Audio
|
ALC892 1xMic in/1xLine out 2x2W
|
|
USB
|
4 x USB ports, 2.0/ 2xUSB 3.0
|
|
LVDS
|
18/24 bit LVDS
|
|
Expansion
|
2xPCIE/ 1xpci-e(M-Sata),1xPCI (16X)
|
|
Watchdog Timer
|
1~256 levels
|
|
Key Features
|
Support dual core vItel Core 2xGbE, 6xCOM, 6xUSB
|
|

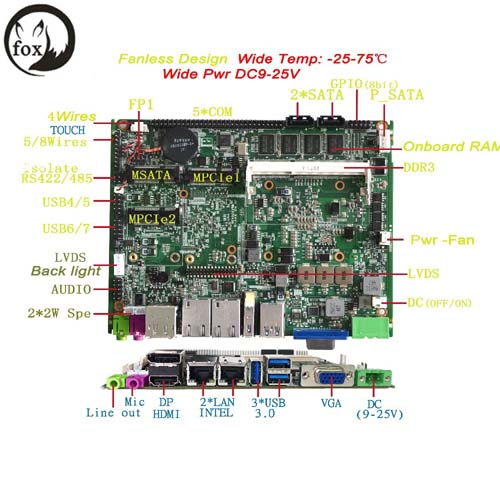

I/O Connectors
|
|
Front Side I/O
|
2 x RJ-45(10/100/1000 Mbps)
1 x VGA
1xHDMI,DP
3 x USB 3.0
1xLine out,Mic
1XDC
|
|
Back Side I/O
|
4xUSB 2.0
6xCOM(1xRs232/422/485) 5xRs232 / Rs485
1xLVDS
1XGPIO(8bit)
2XSATA
1XP-SATA
1xDC(OFF/ON)
|
|
Mechanical and Environment
|
|
Dimensions (L x W)
|
158 x 125 mm
|
|
Construction
|

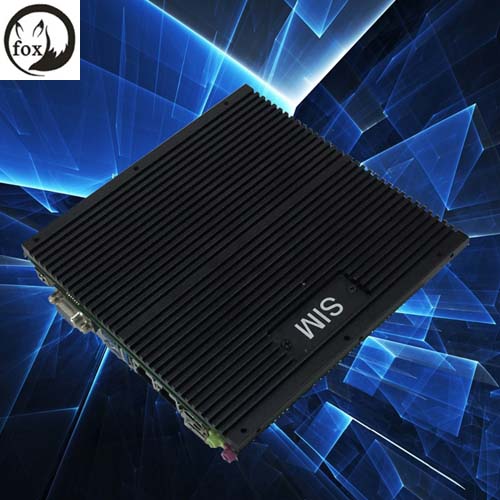

Aluminum housing / Metal
|
|
Power Input
|
+9-30V DC IN (Lockable, Power Jack)
|
|
Net Weight (kg) (without touch)
|
0.33KG
|
Packing list:
|
Packing List
|
|
COM
|
6x Cables (DB9)
|
|
SATA
|
1X POWER Cable / 1x SATA Cable
|
|
Power Cable
|
1x Cable
|
|
CD Driver
|
1x CS Drive
|
Normal Packing:23*21*7 Cm/ carton
Packing List: CD Drivers;Sata cables
Shipping:We accept Fedex;DHL,UPS,TNT etc
Payment
We accept T/T, WESTERN UNION, MONEY GRAM,
Shipping
We always use DHL, Fedex or EMS.
OEM
We Accept customerized OEM if quantity is not small.
WARRANTY TERMS
We provide 1 years waranty
