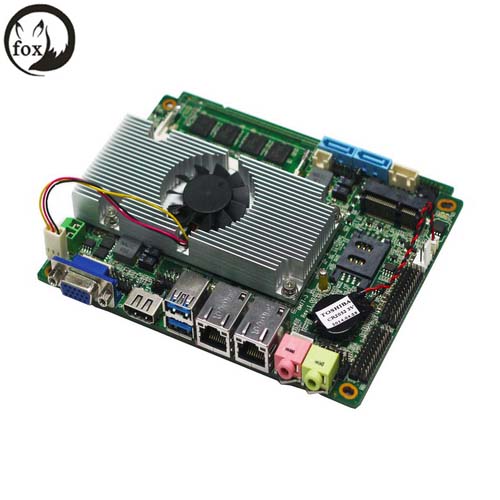

3.5inch Intel Core Motherboards

3.5inch Intel Core Motherboards 3.5inch Intel Core Motherboards 3.5inch Intel Core Motherboards
Product name : 3.5inch Intel Core Motherboards
Item : ITX-BM77-3
Details :

new!!ddr3 8gb laptop/desktop ram BM77 high resolution supported
 motherboard


FOB Price: US $ 1 - 383 / Piece | Get Latest Price
Port: shenzhen
Minimum Order Quantity: 2 Piece/Pieces
Supply Ability: 5000 Piece/Pieces per Week
Payment Terms: L/C,T/T,Western Union,paypal


Packaging & Delivery

Packaging Details:

carton box (Accessory :1 *COM cable :1*CD driver 1*SATA cable 1*SATA power cable )

Delivery Detail:

within 3 days in sample order 7-25days in bulk

Specifications

1.advantech motherboard
2.max resolution: 2048*1536
3.highquality and good price
4.longer lifespan >5years

ddr3 8gb laptop/desktop ram BM77 high resolution supported motherboard


Specification & description



specifications:



Core i7/i3/i5 industrial motherboard
1. Onboard CPU.(Intel Core Sandy/Ivy Bridge i3/i5/i7.
2.DDR3 max 8GB
3.24bit LVDS/HDMI/VGA 1080P
4.3G,WIFI,2 LAN,mSATA



  2014 embedded industrial motherboard and cheap integrated graphics core CPU
  industrial motherboard

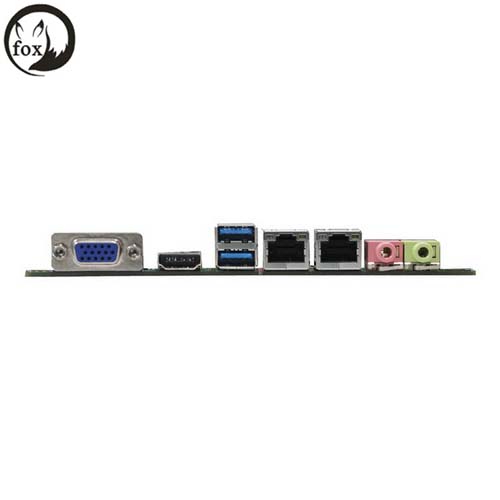

internal I/O





3*USB 2.0 expansion header



2*CPU/SYS Chassis fan connectors



1*Audio I/O expansion header



6*COM expansion headers (support RS232/422/485)



1*GPIO expansion header(8 bit)



1*VGA expamsion header



1*Audio power amplifier connector



1*SPDIF expansion header



1*LPT expansion header





the other information:

Suitable for

AD Player;AIO machine; Thin Client; Firewall;Car PC;HTPC;VOD; IPC; POS etc.

Form Factor

3.5 Inch (115mm×155mm)

Chipset Manufacturer

Intel

CPU

Onboard CPU.(Intel Core Sandy/Ivy Bridge i3/i5/i7 mobile processors optional).

Chipset

Intel® HM77/HM76 Express Chipset Optional.

L2/L3 Cache

L2 Cache:2×256KB;L3 Cache:3MB.CPU integrated.

BIOS

UEFI BIOS



RAM

Onboard Memory.

(Onboard 4GB DDR3 1066/1333/1600MHz memory ;SO-DIMM socket optional,maximum up to 8GB).

Graphics Core

Intel HD Graphics 3000/4000 (CPU Integrated ).

 Sound

Realtek HD ALC662 chipset(Line_out/Mic_in);onboard power amplifier(SPK).

Network

RTL8111E PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting.

Storage

2*SATA;1*MSATA

LVDS

Support dual channel 24bit LVDS connector;Resolution maximum:1920*1200

USB

8*USB (2 external-USB3.0;6 from expansion header-USB2.0)

Expansion Sockets

1*Mini SATA socket for SSD;1*Mini-PCIE socket for WIFI/3G;1*SIM card slot for 3G



Advantages

1.Embedded high performance industrial motherboard. (2.0cm ultrathin)

2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 4GB.

3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;
VGA resolution maximum up to:2048*1536.

6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO
 machine/IPC/VOD/
Car PC/HTPC etc.







package

Retail sample (size)

Batch (size)

delivery details

Carton box (20pcs)

220*210*75mm

510*440*230mm

Within 3 days (sample order)

Carton box (30pcs)

220*210*75mm

620*400*190mm

7-25 days in a bulk



The packing and delivery :

>packing details : carton box (Accessory :1 *COM cable :1*CD driver 1*SATA cable 1*SATA power cable )

>delivery details:

Within 3 days (sample order ) 7-25 days in a bulk

Delivery ways :

Small quantity by air  highly demand by sea
