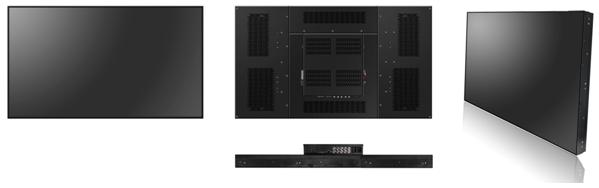

Products details :
|
Full size
|

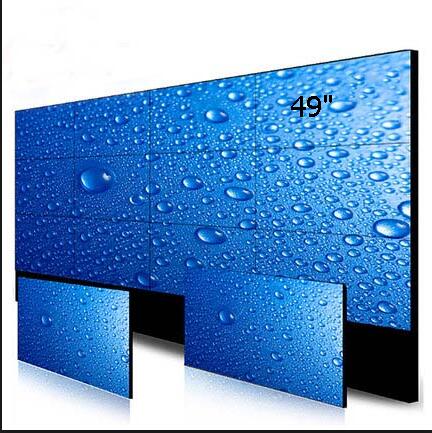

49inch 4*4,16pcs
|
|
Model
|
FX4901VW
|
|
Panel
|
Panel type
|
LG49”DID LCD Panel
|
|
Display size
|
1074.08(W)*604.2(H)(mm)
|
|
Dimensions
|
1077. 58*607.8*109.5（mm）
|
|
Display ratio
|
16：9
|
|
Backlight type
|
LED
|
|
resolution
|
1920*1080
|
|
color
|
16.7M(8bit)
|
|
brightness
|
500cd/m2
|
|
Contrast
|
3500:1
|
|
Viewing angle
|
178°
|
|
Response time
|
≤8ms
|
|
Life time
|
60000hours
|
|
Physical patchwork
|
3.5mm
|
|
Function
|
Color system
|
PAL/NTSC/SECAM
|
|
Menu language
|
Simplified Chinese, Traditional Chinese, English Multi-language
|
|
Operating mode
|
remote control
|
|

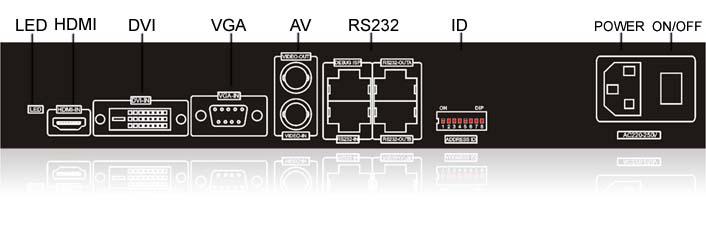

I/O ports
|
VGA input
|
1
|
|
DVI input
|
1
|
|
HDMI input
|
1
|
|
Composite video input (AV)
|
1(BNC*1)
|
|
Composite video output (AV)
|
1(BNC*1)
|
|
|
Control signal input
|
RS232 * 1 upgrade, USB upgrade, infrared access conversion interface
|
|
Control signal input
|
RS232*2（RJ45-8 interface）
|
|
Control signal ring out
|
RS232*2（RJ45-8 interface）
|
|
power
|
Power in
|
AC100-240V,50 /60HZ
|
|
Power consumption
|
≤160W
|
|
Working environment
|
Working temperature
|
0℃—50℃
|
|
Storage temperature
|
-20℃-60℃
|
|
Working / storage humidity
|
20%-80%
|
|
installation
|
cabinet / bracket
|
customization
|
|
Install accessories
|
customization
|
|
Installation method
|
cabinet, wall, bracket, building blocks, embedded, mobile and so on
|
|
others
|
Products Dimensions
|
1077. 58*607.8*109.5（mm）
|
|
Case Color
|
black
|
|
Case material
|
metal
|
|
Certification
|
ISO9001,3C......
|
|
N.W
|
26KG
|
Product Features:
■ full hardware architecture, no CPU and operating system;
■ multi-bus parallel processing, powerful processing;
■ start time is less than 8 seconds, start quickly;
■ No virus infection risk, good security;
■ inherited the multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);
■ composite video can ring out;
■ embedded 3D video bright color separation circuit unit;
■ embedded 3D progressive processing and frame rate normal conversion circuit unit;
■ embedded 3D digital signal noise reduction unit;
■ unit can support to drive to 1920 × 1080 LCD screen;
■ RS232 remote control, each unit can ring out;
■ 24 hours a day to work;
■ easy to operate, with Bin Jia large screen control software can be flexible to operate the system;
■ open the underlying communication protocol, user-friendly flexible use of third-party control system or self-compiled software to build large-screen engineering system.
Application areas:
■ LCD large screen splicing display system is mainly used in military command and control center, government agencies, corporate multimedia video conferencing display system, traffic management command center, urban management emergency command center, production scheduling control center, mining safety industry monitoring center, Hotel, communication information display system, financial securities information display system, public security fire, weather, maritime flood control command center, brand store image display system and other fields.
