8 lan Network seurity MotherBoard |
|
|
| Product name : 8 lan Network seurity MotherBoard |
| Item : ITX-c1037u-8 |
| Details : |

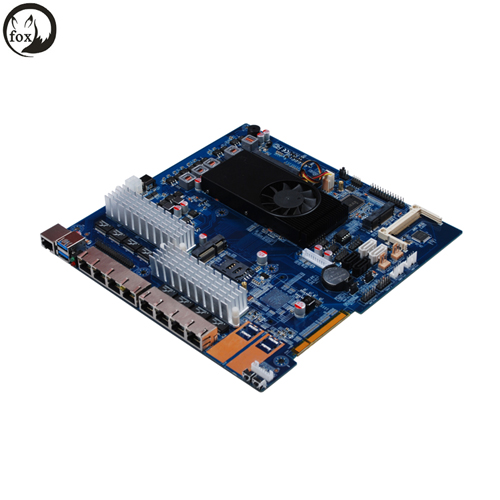

1037U Mini itx motherboard with 8 lan ports
Packaging & Delivery
|
Packaging Details:
|
20PCS/BOX
|
|
Delivery Detail:
|
1 week after payment confirmed
|
Specifications
1037 U mini itx motherboard with 8 lan ports
|
processor
|
Intel Ivy Bridge celoron dual core C1037U 1.8GHz
|
|
chipset
|
Intel HM77
|
|
display chip
|
intergrated Intel HD Graphics core graphic card
|
|
display output
|
internal VGA pin
|
|
memory
|
1*SO-DIMM,DDR3 1333\1600MHz Memory,maximum support 8GB
|
|
sound effect
|
|
|
NIC
|
8*Intel 82583V 1000M
|
|
Storage
|
2*SATAⅡ 2*SATAⅢ
|
|
expansion slot
|
1*PCIE 8X 2*MINI-PCIE(forM-SATA/WIFI) 1*SIM 1*CF
|
|
USB
|
2*USB3.0(rear) 6*USB2.0(need expand)
|
|
COM
|
1*Rj45 to COM
|
|

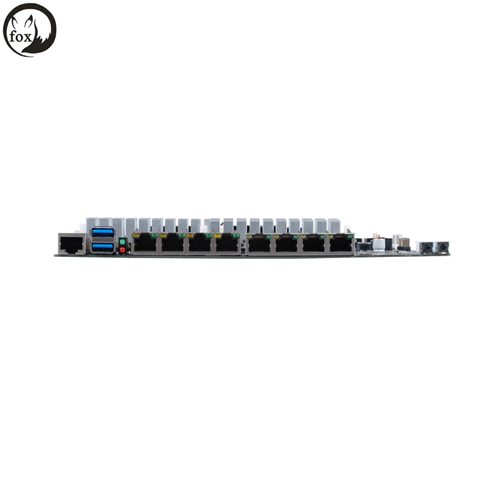

rear I/O port
|
2*USB3.0
8*RJ-45 GLAN
1*RJ-45 to COM
1*PWR BUTTON
1*RESET BUTTON
1*LED(instruction light)
|
|
internal I/O port
|
1*DC(back side)
1*4pin ATX
3*USB2.0 pin(can expand to 6)
1*GPIO pin(support 2 channel GPIO)
1*F-PANEL pin
1*12pin VGA pin
1*PS/2 pin
1-8 LAN-LED pin
1 * CLR_CMOS clear CMOS jumper hat
1*AUTO-ON power on jumper hat
2*SATA-PWR pin
2*SYS-FAN pin
1*CPU-FAN pin
|
|
BIOS
|
AMI 32M BIOS
|
|
power supply
|
DC-IN,internal 4pin Dc power supply interface
|
|
radiating system
|
self CPU radiator and fan
|
|
working environment
|
-15~60℃;0% ~ 95% relative humidity
|
|
plate
|
230X230MM
|
|
 |
|
|
