Name:
|
DC-ATX Power Supply(FOX-PICO120-SV) |
|
Spec:
|
FOX-PICO120-SV |
|
Memo:
|
DC-ATX Power,120W PICO MINI-ITX 直插式,可上AOPENS120 |
|
Class:
|
Computer parts |

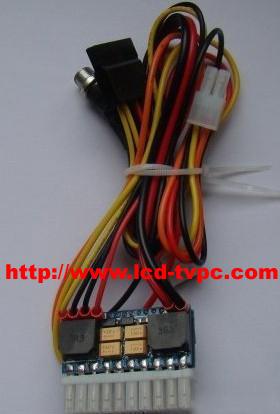

Subminiature MINI upright type DC - ATX power supply
Input: 12 v power: 120 w
Just use the 12 v - 10 a Adapter
The 12 v input * 1 SATA * 1 * 1 D input floppy drive power input 4 * 1 * 1 * 1 20 pin input pin input
Size: 35 * 45 * 18 mm (Without Wire)
Voltage and rated current peak current error %
6 a 5 v 8 a 1.5%
5 VSB 1.5 A 2 A 1.5%
6 a 3.3 V 8 a 1.5%
- 12 v 0.05 A 0.1 A 5%
The 12 v 8 a 10 a related to the input voltage stability
Application: Mini ITX, POS System, bank System, intelligence, surveillance, broadcast television networks, communications systems, vehicle monitoring System
