Embedded Computer

Embedded Computer Embedded Computer
Product name : Embedded Computer
Item : IPC-NFD37
Details :

Item No.

Mainboard

CPU

Memory

LAN

Chassis

Power

IPC-NFD37_2G

ITX-M37_2G

1037U/1.8G

Onboard  2G

2*GLAN

NFD37Chassis

Without

IPC-NFD37_4G

ITX-M37_4G

1037U/1.8G

Onboard  4G

2*GLAN

NFD37Chassis

Without

IPC-NFD37_8G

ITX-M37_8G

1037U/1.8G

Onboard  8G

2*GLAN

NFD37Chassis

Without



X86 Embedded BOX Fanless PC with 10*COM

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Month

Port:

Shenzhen

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Paypal /Escrow



Quick Details

· Products Status: Stock

· Type: Embedded Computer

· Brand Name: FOX GONGKONG

· Model Number: IPC-NFD37

· Place of Origin: Guangdong, China (Mainland)

· Chassis Size: 220*200*87.5mm (L*W*H/mm)

· Title: Fanless PC

· Memory: 2G inboard,SO DDR3 memory, support 2GB

· Expansion Slots: 2 * Mini-pcie slot (supports SSD / WIFI)

· Hard disk interface: Standard 2.5-inch notebook hard drive * 1 SATA Interface

· Serial port: 10 * COM port,

· Cooling System: Totally enclosed fanless system

· Power: AC to DC_12V single power input

· Vibration resistance: 5-60HZ, 0.1 double amplitude displacement

· CPU: Intel C1037u dual-core cpu 1.8G

Packaging & Delivery

Packaging Details:

1 set/ carton

Delivery Detail:

5 working days for sample , TBA for Bulk order

Specifications

X86 Embedded BOX Fanless PC 10* COM
1037U 1.8G CPU, 2G Inboard memory

Non-noise /Dust-saving / Energy-saving / Full enclosed wireless structure



Feature

· Super mini shape, dustproof zero noise, fanless cooling products fuselage airframe
 thermal structure design, machine runs without any noise, the body is full magnesium alloy
 casing, the appearance of small size
220*200*87.5mm (L*W*H/mm)



· Host Support WIFI wireless network card, the terminal infrastructure does not meet the
 network connectivity options, you can choose to use the WLAN. Support MINI-SSD.






Fanless Embedded PC ----------IPC-NFD37

FOX GONGKONG Factory Outlet X86 Embedded BOX Fanless PC with 10*COM





Model No.

IPC-NFD37

Motherboard

ITX-M37

CPU

Integrated Intel® 1037U 1.8GHz dual-core CPU TDP17W

Chipset

Intel® NM70 express chipset

Graphics

Integrated Intel® HD Graphics core, providing VAG, HDMI display output

System Memory

Inboard DDR3 2GB express memorythe memory on-board max up to 8GB



Provide 1* SO DDRIII memory slot, 1066/1333 Memory, Max. up to 8GB

Expansion Slot

1* Mini-PCIE SLOT,Support WIFI/3G module

Storage

1* 2.5’ SATA Hard Disk slot



1* mSATA slot, support SSD/WIFI(The default is SSD 6Gbps)

Network

Integrated 2* Intel Gigabit LAN chip, Supports Wake-on-LAN

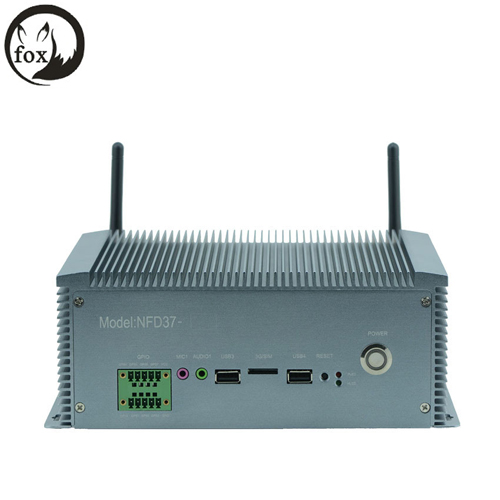

Front Panel Port

1* GPIO port, support 4-way output and input function





2* USB 2.0 ports



1* MIC1 slot

1* Line-out slot



1* SIM slot





1* RESET switch





1* POWER switch





1* LED1 (HDDLED, PWRLED)

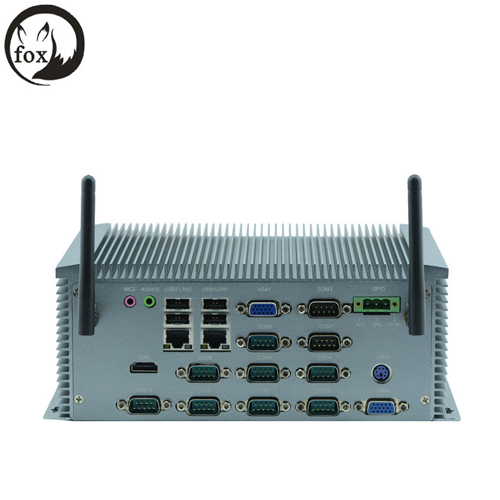

Rear Panel Port

4* USB 2.0 ports



1* PS/2 port



10* COM ports (COM3~COM6 support RS232/422/485 model, Optional)



1* HDMI port

2* VGA port

2* LAN port

1* Line out slot

1* MIC slot

1* DC_12V IN 3pin port

2* WIFI antenna interface

Cooling System

Fan-less cooling

Operating Temperature

-0°C~50°C

Storage Temperature

-40°C~80°C

Operating Humidity

5%-95%(relative humidity; non-condensing)

Anti-vibration

5~400Hz/random operating

Form Factor

220*200*87.5mm (L*W*H/mm)

Power Input

DC_12V single power input 3pin

Installation

Desktop or wall mounting

Material and craft

Sandblasting oxidation process  (silver gray)
