Embedded IPC

Embedded IPC Embedded IPC Embedded IPC
Product name : Embedded IPC
Item : IPC-D2550-QBOX
Price : US $ 331
Details :


Intel Atom fanless embedded IPC 3.5" motherboard 2013 New products


Packaging & Delivery

Packaging Details:

Color box

Delivery Detail:

According to the quantity.

Specifications

embedded IPC
1.Atom D2550-3 1.86GHz Both-Threaded
2.Onboard DDR3 2GB
3.WIFI support;6*COM;4*USB
4.mSATA SSD 8/16GB


Intel Atom fanlessembedded IPC 3.5" motherboard



Advantage:

1.All aluminium shell,good at heat dissipation

2.Compact embedded system design;Fanless,completely mute.

3.Sealed design,dust-proof;shock-proof,very steady.

4.Support Gigabit Ethernet and WIFI.

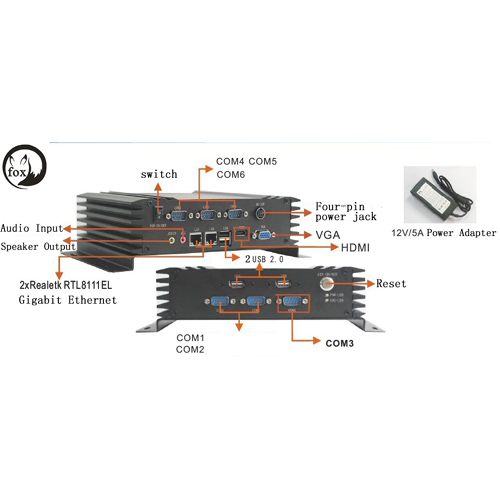

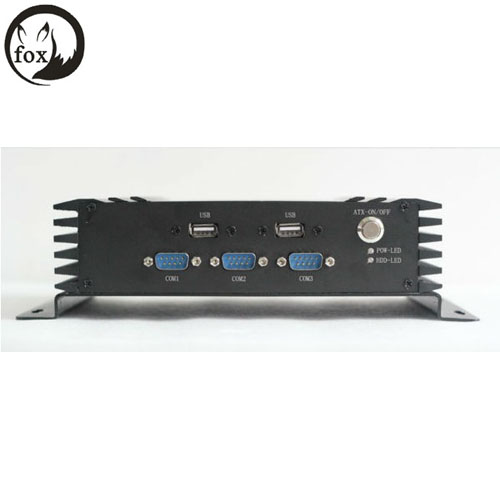

5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.



Main features:















Mainboard



Form Factor

Mini ITX 3.5inch (115mm×155mm)

CPU

Intel® Atom D2550 1.86GHz Both-Threaded

Chipset

Intel® Atom D2550 processor + NM10 chipset

Memory

Onboard DDR3 2GB

Storage

mSATA SSD 8/16GB

COM

6*COM port

USB

4*USB 2.0/1.1 port

VGA

1*VGA interface   1*HDMI

Network

2*1000M Ethernet RJ45 LAN port(WIFI optional)

Audio

1*Audio(line in/line out/Mic)

GPIO

8 group(4-in/4-out)

Watchdog

256

Other Function

Support power booting/plug and play.

Cooling System

Fanless;aluminium shell heat conduction

Power Supply

12V-DC 3A;ATX 4-PIN





Operating Environment





Working

Storage

Temperature

-20°C~70°C (-4°F~158°F)

-20°C~80°C (-4°F~176° )

Humidity

10%~90% (non-condensing)

10%~90% (non-condensing)

Impact

3G@11MS

30G@11MS

Shake

0.4GRMS(10-500HZ)

1.12GRMS(10-500HZ)





Structure



Material

All aluminium shell

Color

Black/Silver (optional)

Size

230mm(L)X55mm(H)X160mm(W)

Weight

2.50KG

Application Area

wall-mounted/desktop/vehicle-mounted/industrial control







OEM Service Offered/Design Service Offered/Buyer Label Offered
