Embedded IPC

Embedded IPC Embedded IPC Embedded IPC

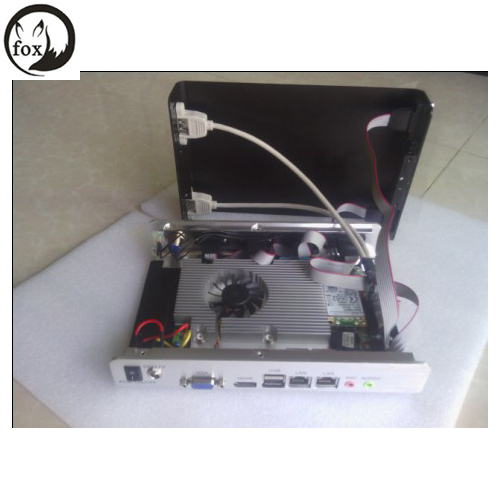

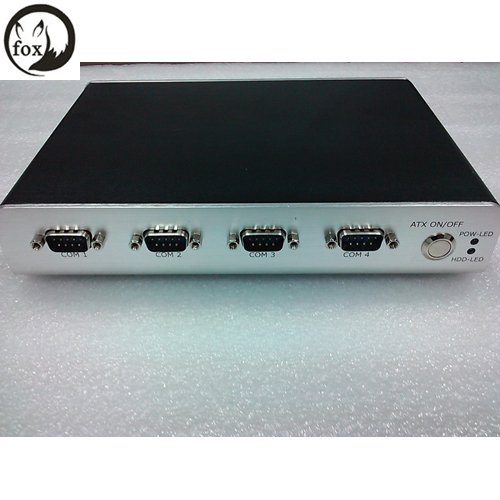

Product name : Embedded IPC
Item : IPC-HM77-3-KBOX
Details :

Advantage:

1.All aluminium shell, Small, lightweight

2.Compact embedded system design;Fan

3.very steady.

4.Support Gigabit Ethernet and WIFI.

5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.



Main features:















Mainboard

Form Factor

3.5inch (115mm×155mm)

CPU

Intel Core3 i7/i5/i3 processors

Chipset

Intel® HM77 Express Chipset

Memory

DDR3 SO-DIMM socket,maximum up to 8GB

Storage

SATA;mSATA

COM

6*COM expansion headers

USB

6*USB 2.0/1.1(2 external;4 expansion header)

VGA

2*VGA interface

Network

2*1000M Ethernet RJ45 LAN port(WIFI optional)

Audio

1*Audio(line in/line out/Mic)

GPIO

8 group(4-in/4-out)

Watchdog

256

Other Function

Support power booting/plug and play.

Cooling System

Fan;aluminium shell heat conduction

Power Supply

2PIN 12V_DC connector





Operating Environment




Working

Storage

Temperature

-20°C~70°C (-4°F~158°F)

-20°C~80°C (-4°F~176° )

Humidity

10%~90% (non-condensing)

10%~90% (non-condensing)

Impact

3G@11MS

30G@11MS

Shake

0.4GRMS(10-500HZ)

1.12GRMS(10-500HZ)





Structure

Material

All aluminium shell

Color

Black/Silver (optional)

Size

205mm(L)X40mm(H)X145mm(W)

Weight

2.50KG

Application Area

wall-mounted/desktop/vehicle-mounted/industrial control
