Name:
|

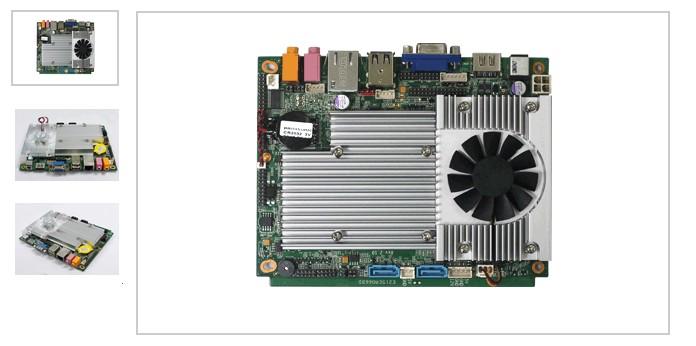

Embedded motherboard(ITX-GM45-3) |
|
Spec:
|
ITX-GM45-3 |
|
Memo:
|
Intel Gm45 3.5' Embedded Motherboard with Intel Core 2 Duo Processor |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Full-capacitor design
On board DDR3/2G Memory, Max support 6GB
Support 3G SIM card, Support MINI PCI SSD, fast speed
|
CPU
|
SU3300 P7350 P7450
|
|
Chipset
|
Intel ICH 8M
|
|
DDR
|
On board 1333 DDR3 2G memory, 1*SODIMM Socket Max support 6GB
|
|
BIOS
|
Award 8MB DIP Flash ROM AMI 16Mbit Support RPL/PXE non-disk start
|
|
Display
|
GMA3150 Dual display VGA+LVDS(18bit)
|
|
Storage
|
2*SATA 1x44P IDE, 1*Mini PCI-E
|
|
Network
|
1*Realtek RTL8111EL PCI-E 1000M RJ-45
|
|
Audio
|
Realtek ALC662 6Channel
|
|
Extension
|
2*Mini PCI-E Support SATA SSD interface&3G module
|
|
Rear I/O:
|
1*12v DC
|
|
1*VGA
|
|
4*USB 2.0
|
|
1*1000M RJ45
|
|
2*Audio I/O
|
|
Front I/O
|
1*30pin LVDS
|
|
4*RS232(2*RS232, 1*RS485, 1*RS422)
|
|
1*GPIO
|
|
1*VGA 2x5 2.0
|
|
1*LPT
|
|
1*AUDIO
|
|
Power supply
|
12v DC input
|
|
Dimension
|
115mm x 155mm
|
|
Working temp
|
-20 to 70degree
|
|
Storage tep
|
-20 to 80degree
|
