Fanless Industrial Computer |
|
| Product name : Fanless Industrial Computer |
| Item : IPC-NFN28 |
| Details : |
|
Model No.
|
IPC-NFN28
|
|
Motherboard
|
EPIC-N28
|
|
CPU
|
Integrated Intel® Atom Dual core N2800 1.86G processor
|
|
Chipset
|
Intel® NM10 high speed chipset
|
|
System Memory
|
1* SO DDRIII Memory Slot,Support 1066/800 Memory, Max. up to 4GB
|
|
Graphics
|
Integrated Intel® GMA3600 Graphics，Providing VAG、HDMI display output
|
|
Storage
|
1* 2.5’SATA
|
|
|
1* MSATA , Supports SSD
|
|
Network
|
Integrated 2*Realtek Gigabit LAN chip,Supports Wake-on-LAN、PXE
|
|
Wireless Network
|
1* Mini-PCIE，supports WIFI
|
|
Front Panel Port
|
2* COM
|
|
|
|
2* USB 2.0
|
|
|
1* PWR and RST switch
|
|
1* PWRLED and HDDLED
|
|

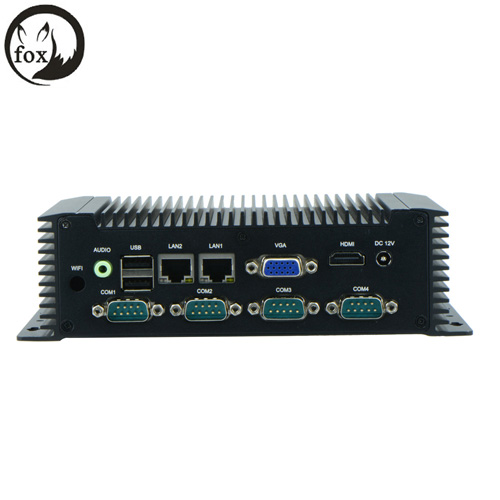

Rear Panel Port
|
4* COM
|
|
|
1* Line out（green）
|
|
|
2* USB 2.0
|
|
|
2* LAN
|
|
1* VGA
|
|
1* HDMI
|
|
1* DC_12V IN
|
|
1* WIFI antenna port
|
|
Cooling System
|
Full enclosed and fanless ,cooling by chassis
|
|
Operating Temperature
|
-0℃～50℃
|
|
Storage Temperature
|
-20℃～70℃
|
|
Operating Humidity
|
5%-95%(relative humidity; non-condensing)
|
|
Anti-vibration
|
5～400Hz/random operating
|
|
Form Factor
|
172*107*54mm (L*W*H/mm)
|
|
Power Input
|
DC_12V single power input
|
|
Installation
|
Desktop or wall mounting
|
|
Material and craft
|
Sandblasting oxidation process (Black)
|
|
 |
