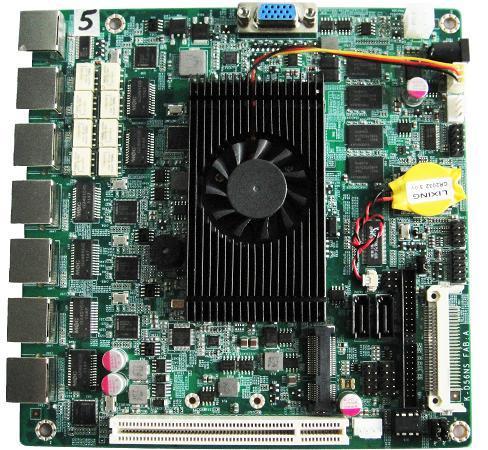

Firewall,Network Motherboard |
|
|
| Product name : Firewall,Network Motherboard |
| Item : ITX-D56NS |
| Details : |
|
Name:
|
Firewall,Network Motherboard(ITX-D56NS) |
|
Spec:
|
ITX-D56NS |
|
Memo:
|
Intel ATOM Pinetril D525 processor,6 Intel 82574L Giga LAN |
|
Class:
|
Mini-ITX Motherboards |
Online Shop: http://www.aliexpress.com/store/312429
Payment Terms: T/T,Western Union,PAYPAL,ESCROW
Features
- Intel ATOM Pinetril D525 processor
- 6 Intel 82574L Giga LAN
- LAN1+LAN2 bypass;
- 2GB USB Flash Onboard
- 2*SATA, 1*IDE and 1*CF
- 170*170*22mm, slimmest, 12V DC IN
|
M.B Spec
|
|
Main
|
CPU
|
Intel Atom D525
|
|
Clock Speed: 1.8GHz, Dual Core, 1M cache
|
|
Consumption 13w, SMD BGA package
|
|
Chipset
|
Intel D525+ICH8M
|
|
Memory
|
DDR3 1333MHz memory onboard
|
|
Support 1GB or 2GB Flash
|
|
Bios
|
SPI Phoenix bios
|
|
Support ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
|
|
LAN
|
IC
|
Intel 82574L PRO
|
|
Speed
|
10/100/1000Mbps adapting
|
|
Interface
|
6x RJ45
|
|
Storage
|
FLASH
|
USB, 2GB Flash
|
|
SATA
|
2x SATAII port
|
|
IDE
|
1x 44pin IDE slot, IDE Slave default
|
|
CF
|
1x CF，3.3v/5V Adjust, IDE Master default
|
|
USB
|
Speed
|
USB2.0 480Mb/s
|
|
Port/Header
|
2x Standard USB Header
|
|
Display
|
Graphics
|
Intel GMA3150
|
|
Port/Header
|
1x VGA Header
|
|
Other
|
PS/2
|
1x 2*4 PS/2 header
|
|
COM
|
1x RJ45 COM port，1x 2*5 COM header
|
|
PCI
|
1x standard PCI slot
|
|
PCIE
|
1x Mini-PCIE (co-lay with LAN6), by option
|
|
Power-In
|
1x DC-Jack, 1x ATX 2*2 4pin socket,12v DC Input
|
|
PCB
|
spec
|
170*170mm, 6layer, Green
|
|
O.S
|
Windows
|
WIN2000/XP/WIN7
|
|
other
|
Unix/Linux
|
|
Work Temp
|
T range
|
-20~60℃
|
|
H range
|
0~85%RH
|
|
|
|
|
