Main Features

Form Factor

Mini-ITX 170mm×170mm

Chipset Manufacturer

Intel

CPU

Support the newest LGA1155 interface all series processor

Chipset

Intel® H61 Express chipset

BIOS

AMI BIOS

RAM

DDR3 1066/1333/800MHz memory,SO-DIMM socket,maximum up to 16GB

Integrated Graphics

Intel X4500

 Sound

Onboard Realtek ALC662 high-fidelity 6 channel sound card.

Network

Onboard RTL8111EL Gigabit Ethernet LAN

Storage

2*SATA;1*mSATA

USB

8*USB 2.0/1.1(4 external;4 expansion header)

Expansion Sockets

1*Mini SATA socket;1*Mini-PCIE socket for WIFI

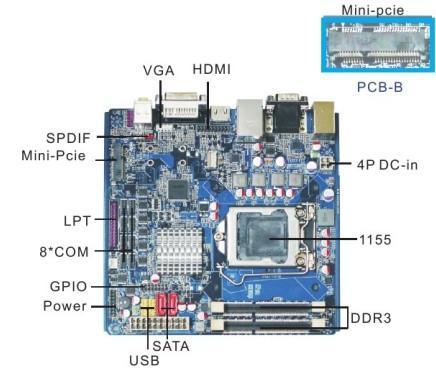

rear panel I/O

1*PS2 port

1*HDMI

2*COM port

1*DVI port

1*VGA port

4*USB 2.0/1.1 port

1*1000M RJ45 port

2*Audio I/O interfaces( Line in,Line out,Mic)

Internal I/O

4*USB 2.0/1.1 expansion header

2*CPU/SYS Chassis fan connectors

1*Audio I/O expansion header

8*COM expansion headers (support RS232/422/485)

1*GPIO expansion header(8 group)

1*LPT expansion header

1*VGA expamsion header

1*HDMI expansion header

1*Audio power amplifier

2*Onboard Mini PCIE expansion header

1*SPDIF expansion header

Power Interface

4PIN,24PIN ATX power supply

Working Temperature

-20°C~70°C (-4°F~158°F)

Storage Temperature

-20°C~80°C (-4°F~176° )

Operating Humidity

 10%~90% (non-condensing)

Advantages

1.Embedded high performance industrial motherboard.

2.DDR3 1066/1333/800MHz memory,SO-DIMM socket maximum up to 16GB.

3.Support LGA 1155 interface Intel Sandy/Ivy Bridge series processor

4.Onboard 8*USB2.0 high-speed interface,

5.Onboard VGA. DVI.HDMI display interface, support double screen double power consumption

6.Reliable, High stability, Low noise, low power consumption.Perfectly

7.Certificate:CE,FCC,RoHS
