CPU
|
Support FSB 533/400/CPU PM900M-1.86G
|
|
Chipset
|
Intel 915GM +82801DBM chipsets
|
|
Main Memory
|
Support DDR2 1GB
|
|
VGA
|
Intel Intel915GM Extreme Graphics2
|
|
Ethernet
|
Onboard One RTL8111C 1000/Base-T Ethernet controllers
|
|
IDE & SATA
|
One enhanced PCI IDE channels which support up to 2 IDE devices
TWO SATA devices
Support ATA-100, data transfer rate up to 100MB/sec
|
|
PCI AUDIO & COM
|
Support one PCI devices
Support HDAudio
Support FIVE COM
Support wifi
|
|
System BIOS
|
Award BIOS with 4MB Firmware Hub
ACPI/PnP supported
Software WatchDog supported
|
|

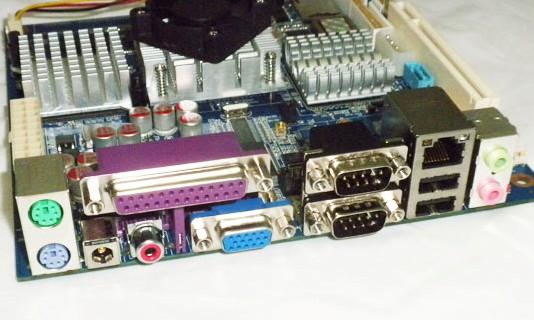

I/O Output
|
Two COM port
One DB-15 VGA port
PS/2 mouse and keyboard connectors
Double Deck downstream USB 2.0 ports
One RJ-45 LAN ports
One LPT
One 12V-DC Power
One S/AV
|
|
Expansion Slots
|
One PCI slot
|
|
Form Factor
|
Flex-ATX @ 170mm (L) ×170 mm (W),
|
