Embedded motherboard

Embedded motherboard Embedded motherboard

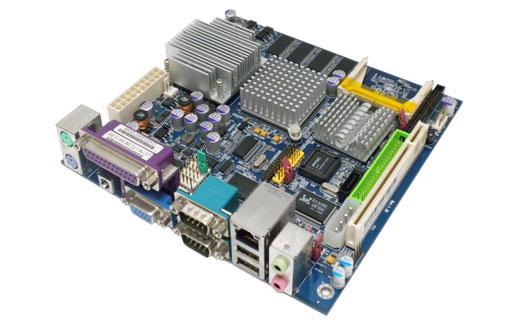

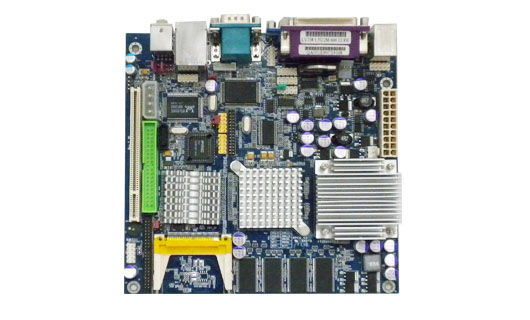

Product name : Embedded motherboard
Item : ITX-855GM
Details :
Name:
Embedded motherboard(ITX-855GM)
Spec:
ITX-855GM
Memo:
Onboard DDR 512M memory
Class:
Mini-ITX Motherboards

Online Shop: http://www.aliexpress.com/store/312429Payment Terms: T/T,Western Union,PAYPAL,ESCROW





 CPU

Support FSB 533/400/CPU  PM900M-1.86G

 Chipset

Intel 855GM +82801GBM chipsets

 Main Memory

Support DDR 512M

 VGA

Intel Intel855GM Extreme Graphics2

 Ethernet

Onboard two RTL8111C 10/100/Base-T Ethernet controllers

 IDE & SATA

One enhanced PCI IDE channels which support up to 2 IDE devices
One  SATA devices
Support ATA-100, data transfer rate up to 100MB/sec

 PCI  AUDIO & COM

Support one PCI devices
Support  HDAudio
Support FIVE COM

 System BIOS

Award BIOS with 4MB Firmware Hub
ACPI/PnP supported
Software WatchDog supported

 I/O Output

Two COM port
One DB-15 VGA port
PS/2 mouse and keyboard connectors
Double Deck downstream USB 2.0 ports
One RJ-45 LAN ports
One LPT
One 12V-DC Power

 Expansion Slots

One PCI slot

 Form Factor

Flex-ATX @ 170mm (L) ×170 mm (W),
