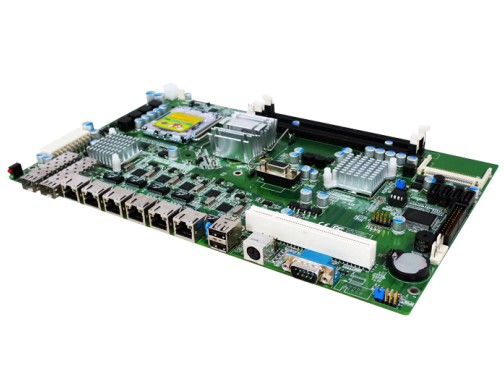

Firewall motherboard

Firewall motherboard Firewall motherboard
Product name : Firewall motherboard
Item : ITX-ISG41
Details :
Name:
Firewall motherboard(ITX-ISG41)
Spec:
ITX-ISG41
Memo:
Intel G41 + ICH7R,6 * PCI-E Gigabit LAN,2 * SFP Transceiver.
Class:
Mini-ITX Motherboards

  • Name: ITX-ISG41
  • PCB Version: 318 mm × 189 mm
  • Chipset: Intel G41 + ICH7R
  • Socket: 775
  • Memory: DDR3


CPU
Supports FSB 533/800/1066/1333 CPU;
Supports Intel Pentium HT(Hyper Threading Technology)CPU;
Supports Intel Intel Core 2 Duo Socket775 CPU;
Supports Intel Core 2 Quad Socket775 CPU;
Chipset
Intel® G41 + ICH7R Chipsets
Main Memory
Supports DDRIII 1066/1333 Double Channel Mode
Provides Two 240 pin DDR3 slots
Support 1066/1333 DDRIII up to 4GB
VGA
Integrated Graphics controller in G41 GMCH
Integrated Intel Graphics Media Accelerator X4500
One VGA Port  it can accelerate DirectX 10 and Shade Model 4.0 and OpenGL2.0 performance of hardware400MHz core frequency
Ethernet
Six Intel 82574L PCI-E Gigabit LAN controller
Two Intel 82575 SFP Transceiver.
Storage
One 50pin CF slot
Four SATA devices
Support ATA-100, data transfer rate up to 100MB/sec
USB 2.0
Integrated USB 2.0 controller in ICH7R
Supports Hi-speed, Full-speed and Low-speed data transfer --rate. Max. Bandwidth 480Mbits/s
Expansion Slots
1 PCI slot
I/O Interface
- 1 * LPT PortSupport SPP/EPP/ECP
- 1 * PS/2 mouse and keyboard connectors
- 1 * COM
- 1 * VGA
- 6 * PCI-E Gigabit LAN
- 2 * SFP Transceiver.
System BIOS
Phoenix-Award BIOS with 8MB Firmware hub
Built-in Trend ChipAway Anti-Virus Program
ACPI/PnP supported
Environment
Operating temperature:0  to 65
Storage temperature:-20 to 80
Relative humidity:10% to 90%(Non self-solidifying)
Form Factor
- Flex-ATX @ 318 mm (L) × 189 mm (W)
